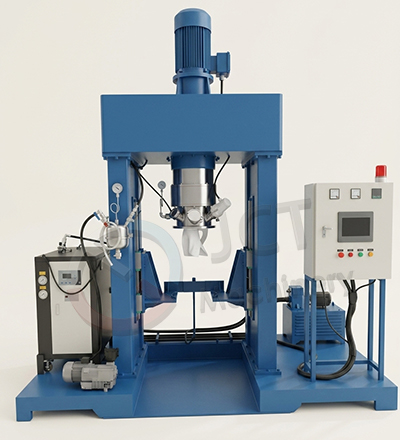

Ceramic Matrix Composite Vertical Kneader

JCT offers high-viscosity vertical kneaders specifically designed for ceramic matrix composites, silicon carbide, and resin precursors. Featuring a top-mounted bearing design, the equipment completely eliminates metal contamination and material leakage; it supports high-vacuum degassing, customizable wear-resistant coatings, and precise temperature control. A full range of models is available, from 10L to 5000L.

• Precision control, zero metal contamination :

• High-torque kneading for ultra-high viscosity materials :

• High-vacuum degassing and sealing :

Whatapp：+86 181 3837 3963

Email：verticalkneader@outlook.com

Ceramic matrix composites (CMCs) are composite materials formed through appropriate processing techniques, utilizing a ceramic matrix reinforced with fibers, whiskers, platelets, or particles made of ceramics, carbon, or refractory metals. For instance, in the powder metallurgy process for producing specialized ceramics, ceramic matrix powders are thoroughly mixed with reinforcing materials and a binder; the mixture is cold-pressed into the desired shape and subsequently sintered—or directly hot-pressed—to produce the final ceramic matrix composite.

Ceramic Matrix Composite Vertical Kneader Equipment Parameters

Model	Full Volume /L	Useful Volume /L	Min Volume /L	Power /KW	Pericentric Blade Speed /rpm	Telecentric Blade Speed /rpm	Revolution Speed /rpm	Clearance /MM	Vacuum Abs Pressure /kPa
VK-10	16.9	12	2	5.5	0~25	0~50	0~6	3±0.5	<1.5
VK-100	135	100	15	22	0~25	0~50	0~6	4.5±0.5	<1.5
VK-500	500	350	60	37	0~22.5	0~45	0~6	5.5±0.5	<1.5
VK-1000	1000	600	120	45	0~22.5	0~45	0~6	6±1	<1.5
VK-2000	2000	1200	200	55	0~20	0~40	0~6	7±1	<1.5
VK-3000	3000	1800	300	75	0~20	0~40	0~5	8±1	<1.5
VK-5000	5000	3000	500	110	0~18	0~36	0~5	9±1	<1.5

**Designed according to actual needs.

ceramic matrix composite vertical kneader

Advantages of Ceramic Matrix Composite Vertical Kneader

1. No high-speed dispersion

Eliminates the need for mixing technologies that reply solely on high rotational speeds.

2. No dead zones

Planetary mixing ensures no dead zones and high product uniformity.

3. High-quality finished product

The finished product features tight structural bonding, high strength, high toughness, and low thermal expansion.

4. High-efficiency production

Achieves efficiency more than ten times that of other mixing equipment.

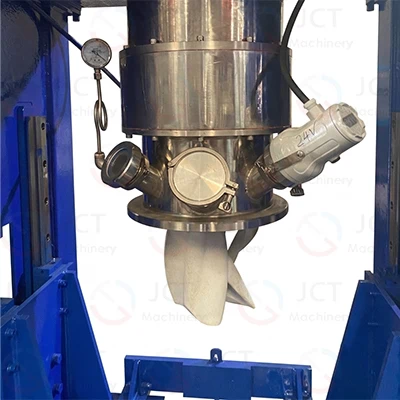

wear-resistant, contamination-free coated blades for ceramic matrix composite vertical kneader

JCT's ceramic matrix composites vertical kneader helps you say goodbye to unevenness and high wear!
