Vertical Kneader For Various Applications

Product Features

Project	Dental resin	Rocket propellant
Product Feature	Organic photosensitive resin, moderate viscosity, extremely sensitive to color and impurities	High-energy compound (including oxidizer/aluminum powder, etc.), extremely high viscosity, flammable and explosive
Usage Environment	Medical grade, high requirements for clean environment	National defense and military industry, strict management of dangerous goods
Safety Risk	Mainly chemically irritating, non-high-risk	There is a tisk of combustion/explosion, extremely high risk
Target Focus	Impurity control, uniformity, stable temperature control	Safety protection, low shear, anti-local temperature rise, anti-spark design

Comparison of Vertical Kneader Design Differences

Stirring Speed

Dental resin vertical kneader: Medium speed (20-60rpm adjustable).

Rocket propellant vertical kneader: Extremely low speed (3-15rpm), with an emphasis on preventing high shear friction.

Material Processing

Dental resin vertical kneader: The contact part uses SS316, and the inner wall is mirror polished to meet the requirements of sterility/low precipitation.

Rocket propellant vertical kneader: Use high-strength steel or special anti-static coating, such as titanium alloy liner adn insulation layer, to avoid static electricity accumulation.

Heating System

Dental resin vertical kneader: Precision temperature control jacket (usually water/thermal oil heating), can be precisely controlled to ±0.5℃.

Rocket propellant vertical kneader: Strictly limit temperature rise, most of them are kneading at room temperature, need to be equipped with cooling system, and electric heating is strictly prohibited.

Sealing and Anti-pollution

Dental resin vertical kneader: High sealing performance, anti-foreign matter, dust and bacteria, often equipped with vacuum system.

Rocket propellant vertical kneader: Anti-explosion, anti-static, dust-proof sealing design, equipped with inert gas (such as nitrogen) protection system.

Safety Control System

Dental resin vertical kneader: Focus on conventional control such as temperature and mixing time.

Rocket propellant vertical kneader: Equipped with military-specific safety modules such as explosion isolation system, torque monitoring, temperature interlock, inert gas protection, emergency shutdown, etc.

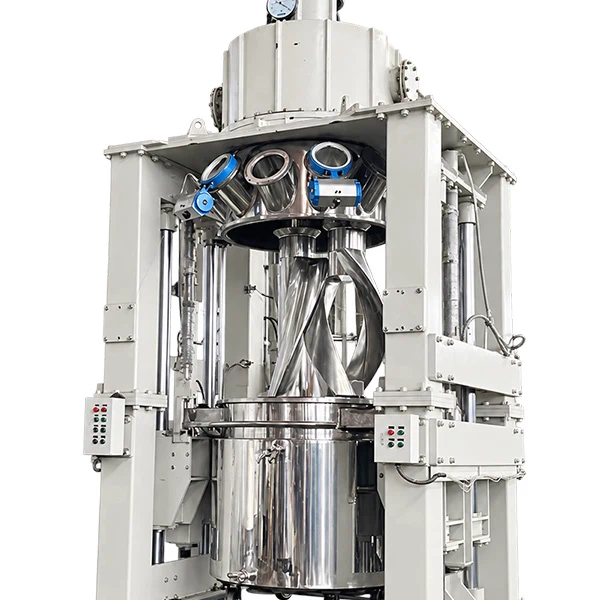

Vertical Kneader

Dental resin vertical kneader focuses on cleanliness, uniformity, temperature control and pollution prevention.
Rocket propellant vertical kneader focuses on low shear, safety and explosion-proof, and anti-static, and is a highly customized military-grade equipment.

If you would like to learn more about the application range of vertical kneaders, please click here or contact us.

Tel: +86-181 3837 3963 (Whatsapp, Wechat)

Email: verticalkneader@outlook.com

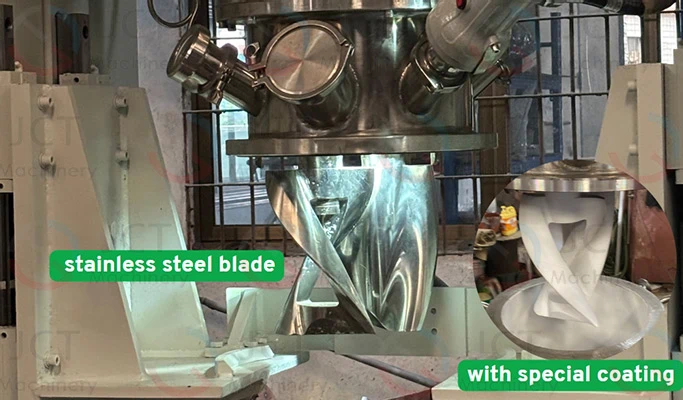

vertical kneader blades
