Vertical Kneader And Double Planetary Mixer

In the realm of industrial stirring and kneading equipment, both vertical kneaders and double planetary mixers are high-end machines capable of processing high-viscosity materials, and both utilize a planetary motion mechanism involving "revolution + rotation".

However, there are fundamental differences between the two regarding the principle of compounding, upper viscosity limits, shear strength, and applicable materials.

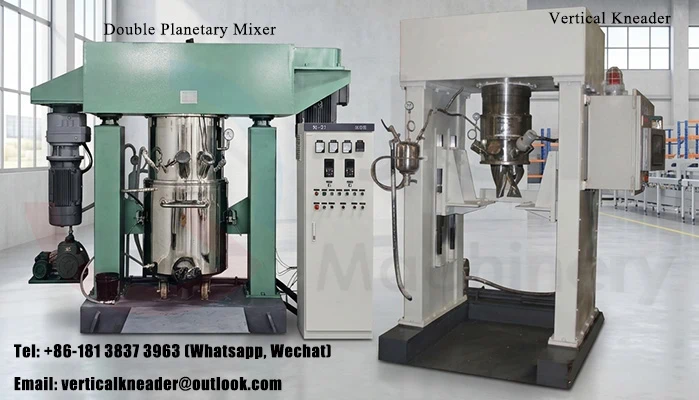

In-house manufacturing of vertical kneader and double planetary mixer

Key Differences Between Vertical Kneader and Double Planetary Mixer

	Vertical Kneader	Double Planetary Mixer
Key Capabilities	Kneading & shearing	Dispersing & mixing
Applicable Viscosity Range	Ultra-high viscosity (up to 30,000,000cP)	Medium-to-high viscosity (typically 10,000~1,000,000cP)
Impeller Structural Features	Twisted blades—one hollow and one solid—featuring thick walls and minimal clearance	Claw-type, twisted blade, folding blades impellers, relatively thin and lightweight blades
Motor and Gear Reducer Configuration	Ultra-high torque and low rotational speed; designed to overcome extremely high shear resistance	Medium-to-high torque and a wide speed range; emphasis on dispersion within the flow field
Material Form	Pastes, high-solid dough-like materials, polymer blocks, solid/semi-solid materials	Flowable gels, high-viscosity liquids; suspensions, and slurries

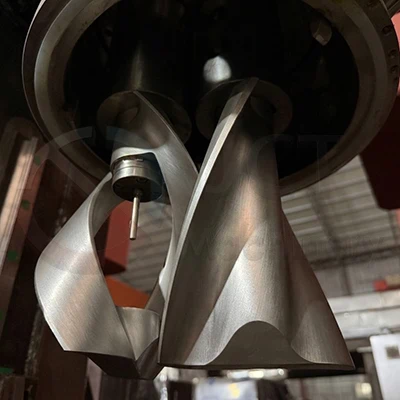

vertical kneader blades: powerful shearing with no dead zones

How do you select the righ equipment?

Vertical kneader: When your material has an extremely high solids content and lacks fluidity (e.g., dry-process solid-state battery electrolytes, propellant mixing, or high-viscosity dental resins), or when powerful de-agglomeration and kneading are required at extremely high viscosities.
Double planetary mixer: When your material is a flowable colloid or slurry (e.g., conventional liquid electrode slurries for lithium batteries, silicone sealants, or structural adhesives), and the primary objective is to uniformly disperse powders into a liquid matrix.

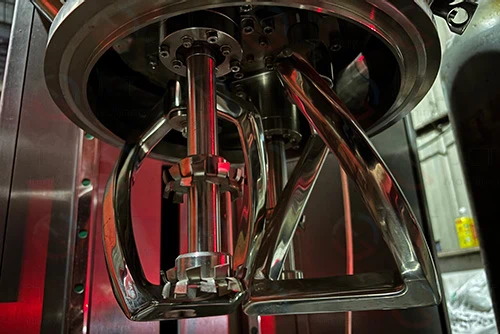

double planetary mixer twisted blades with dispersing discs

Our engineering team can provide customized equipment selection and process validation based on your material characteristics. Contact us below to receive a free technical proposal and equipment quote, or to schedule a trial run at our facility using your own materials.
