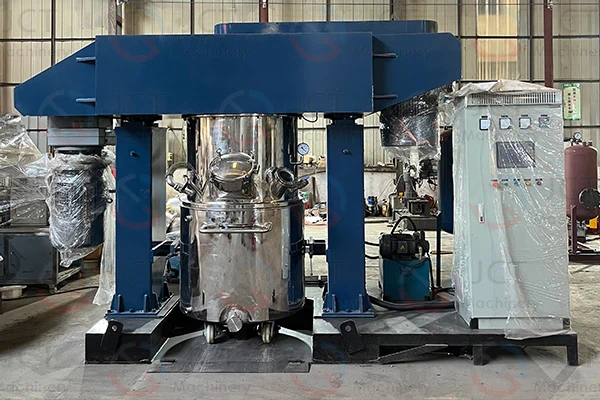

Cosmetic Double Planetary Mixer

Cosmetic double planetary mixer is an industrial mixing device specifically designed for high-viscosity, high-solids-content, and high-quality cosmetic materials. Featuring a dual-planetary mixing structure, the equipment achieves thorough mixing, dispersion, shearing, and homogenization, even under high-viscosity conditions.

JCT Machinery offers customized double planetary mixer and complete cosmetic production line solutions tailored to customers' product formulations, production capacities, viscosity requirements, and processing needs.

Tel: +86-181 3837 3963 (Whatsapp, Wechat)

Email: verticalkneader@outlook.com

Cosmetic Double Planetary Mixer Equipment Parameters

**Designed according to actual needs.

Main Structure of Cosmetic Double Planetary Mixer

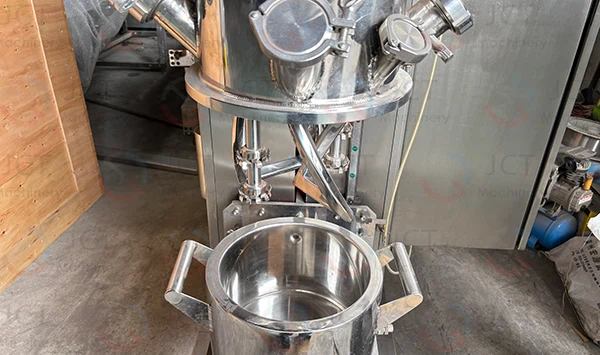

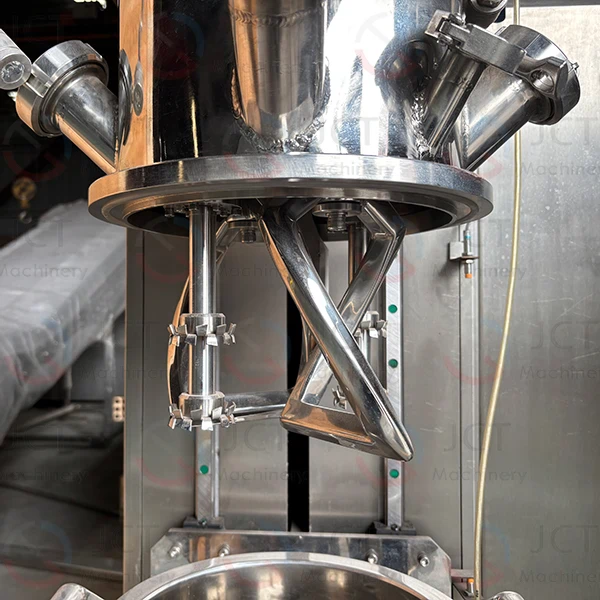

1. Double planetary mixing system

Two sets of planetary mixing blades rotate on their own axes while simultaneously revolving around the central axis. This combined motion ensures thorough circulation of high-viscosity materials within the mixing vessel and minimizes mixing dead zones.

2. High-speed dispersion system

High speed dispersing disc can be configured based on the cosmetic formulation. This disc generates strong shear forces, facilitating the rapid dispersion of powders, pigments, thickeners, and other functional ingredients.

3. Wall-scraping device

The planetary mixing paddle is equipped with a mechanism for scraping both the bottom and the wall of the cylinder, continuously returning material adhering to the inner surfaces back into the mixing zone during operation. This not only minimizes material residue efficiency and heat transfer performance.

4. Vacuum degassing system

Cosmetic products typically have high standards regarding appearance and texture. Double planetary mixer can be equipped with a vacuum system to reduce the internal pressure of the mixing cylinder during the mixing process, thereby helping to remove air and bubbles from the material.

5. PLC automatic control system

Cosmetic double planetary mixer can be equipped with a PLC and HMI control system to regulate parameters such as mixing speed, dispersion speed, temperature, vacuum level, and operating time. Recipe parameter management helps ensure product consistency across different batches.

Products That Can Be Produced By Cosmetic Double Planetary Mixer

• Face cream
• Moisturizing cream
• Skin care cream
• Facial mask
• Sunscreen cream
• Cleansing cream
• Hair mask
• Hair conditioner
• Cosmetic gel
• Body cream
• Cosmetic paste

Contact JCT Machinery for a customized cosmetic double planetary mixer solution: +86-181 3837 3963 (Whatsapp, Wechat), verticalkneader@outlook.com.
